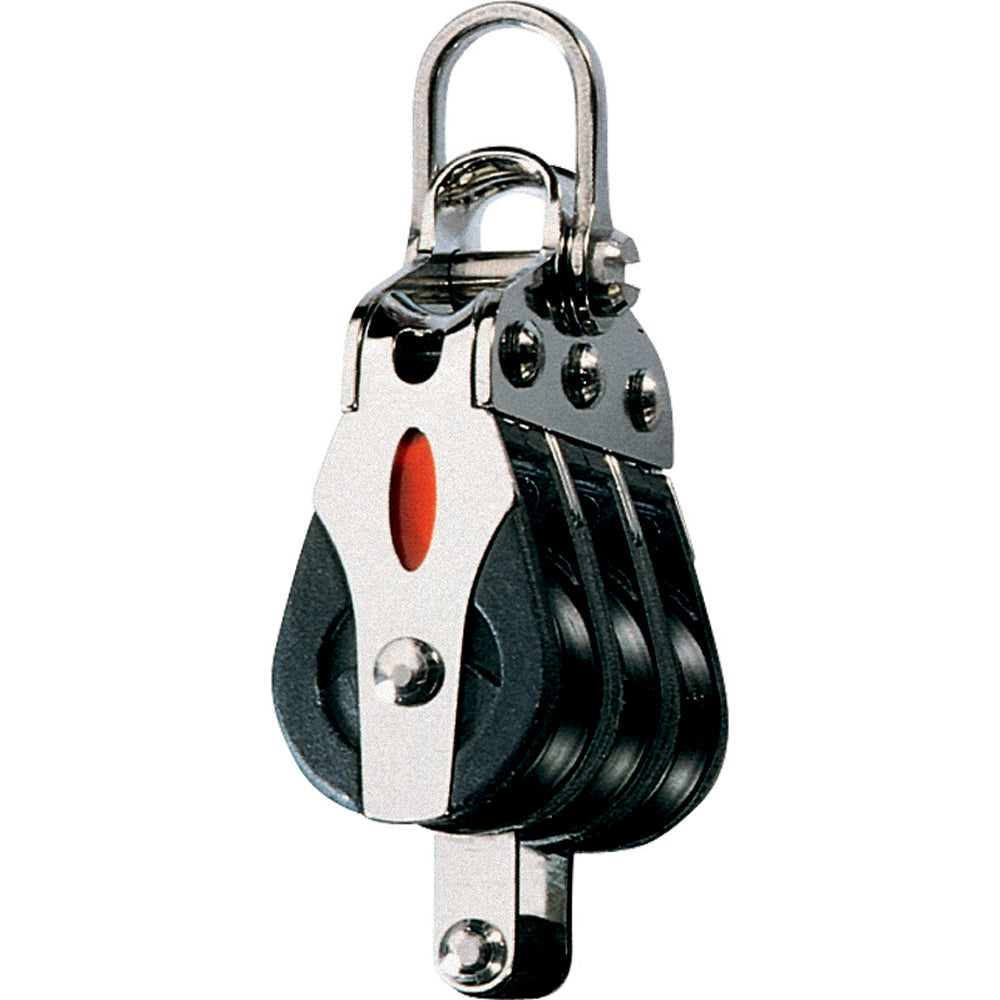

Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head [RF20312]

$53.30 $45.31

Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head

Features:

Low friction
High static and dynamic load capacity
Lightweight
Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
Two-Way head can be fixed at 0° or 90°

Applications:

Dinghy control lines
Dinghy vangs
Cunninghams
Traveller controls

Materials:

Stainless steel ball bearings
UV Stabilized Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:t20mm(3/4")
Max. Rope Ø:t6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.:t400kg(880lbs)
B. L.:t850kg(1,870lbs)
Weight:t64g(2.3oz)
