Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32" [02674]
Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32" [02674]

Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32" [02674]

Regular price $159.90 Sale price $107.99

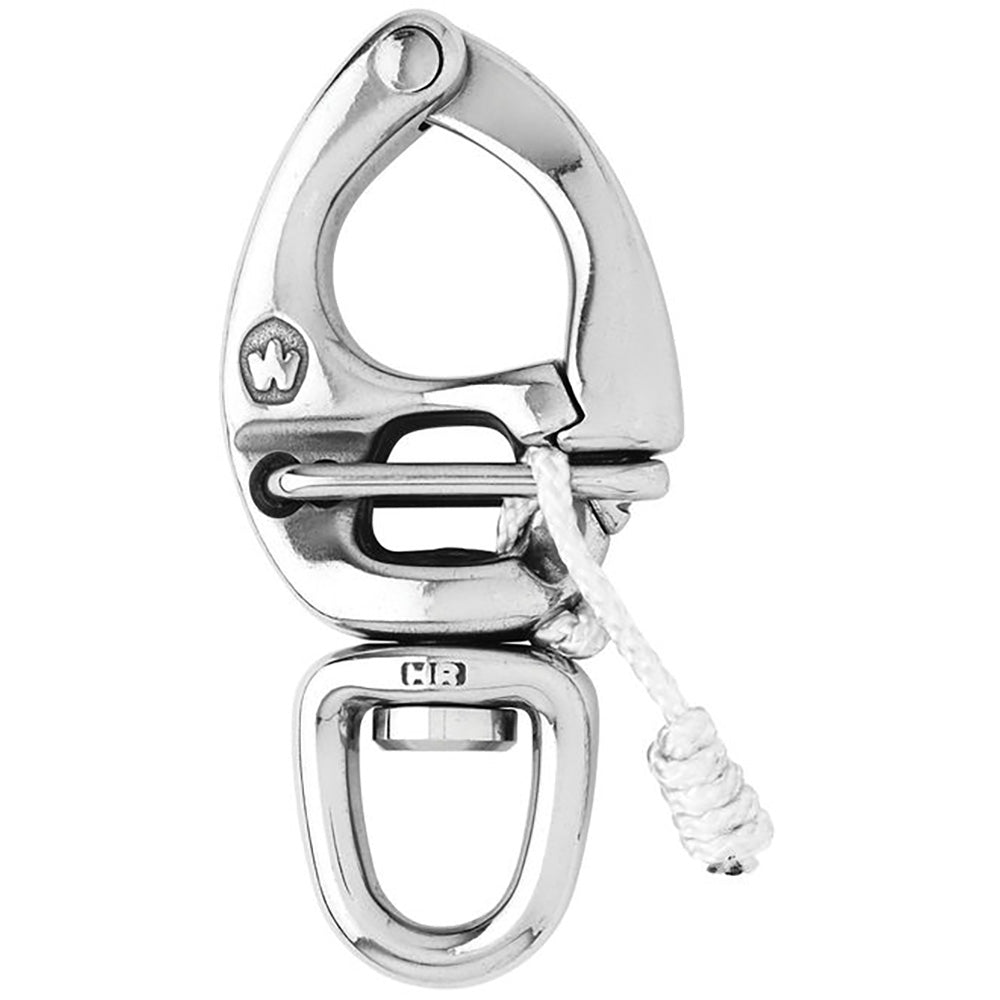

HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 5070 / (kg) 2300
  • Weight: (lb) 0.194 / (g) 88

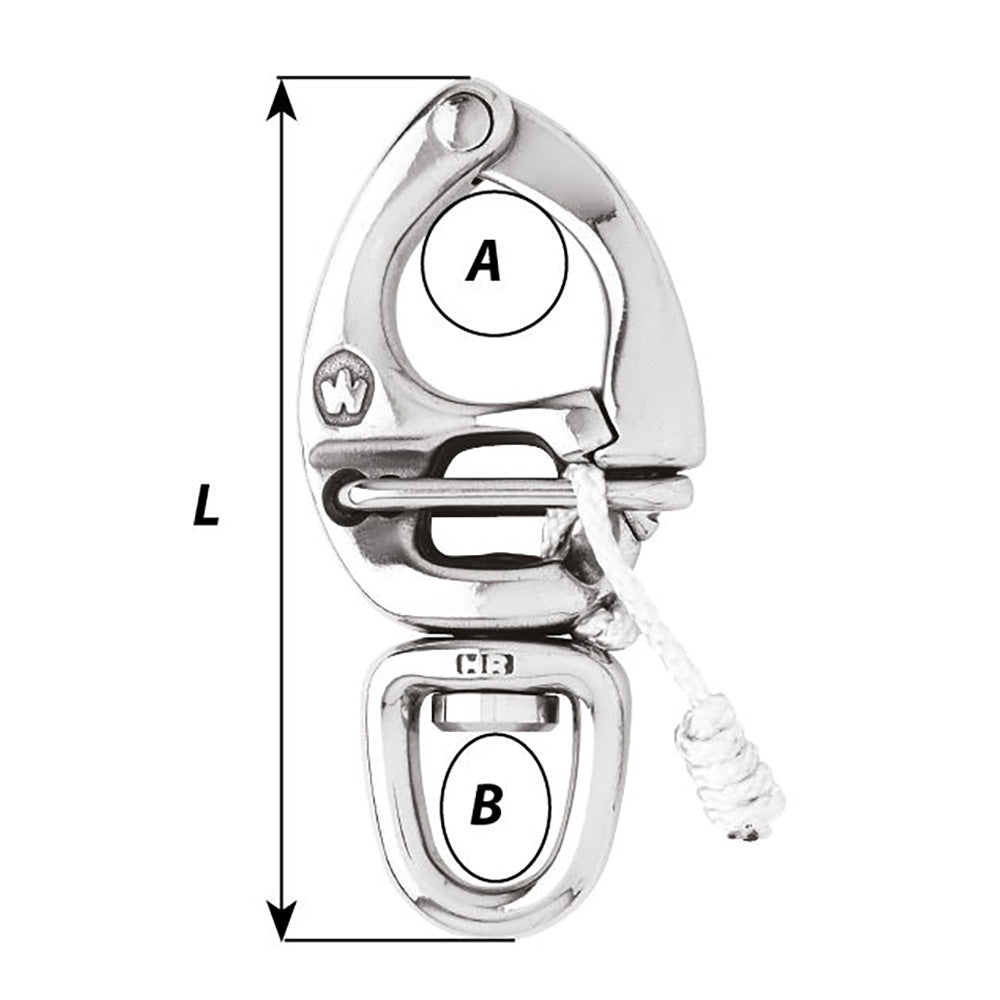

Dimensions:

  • A: (inch) 5/8" / (mm) 16
  • B: (inch) 15/32" / (mm) 12
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
